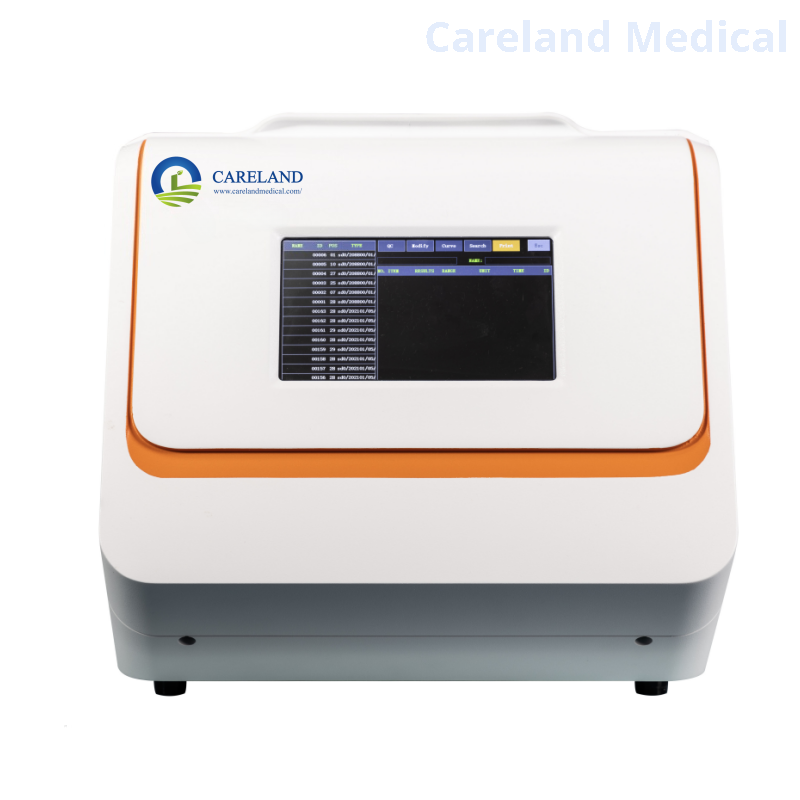

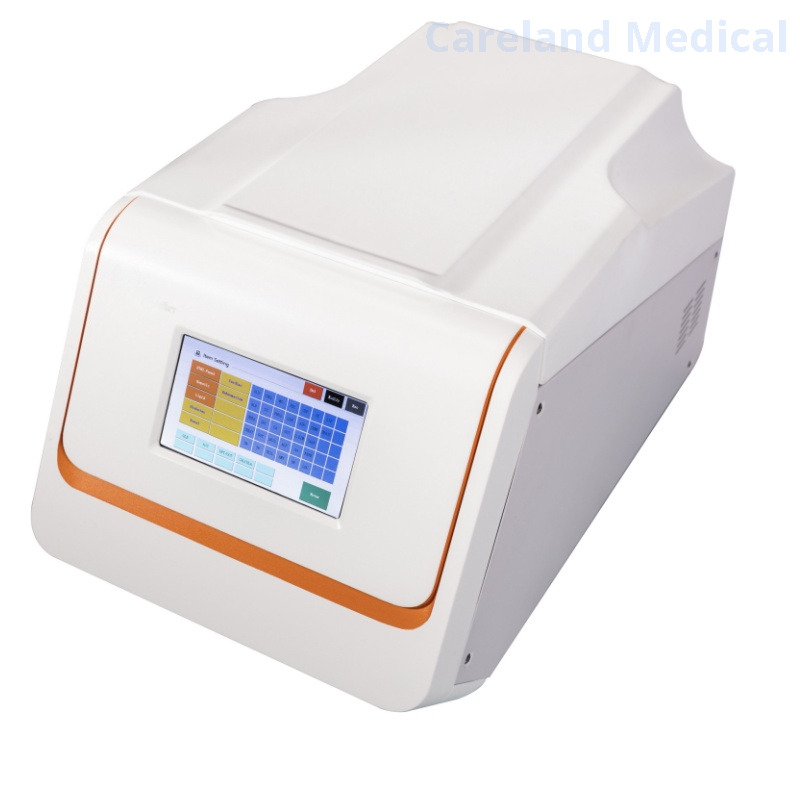

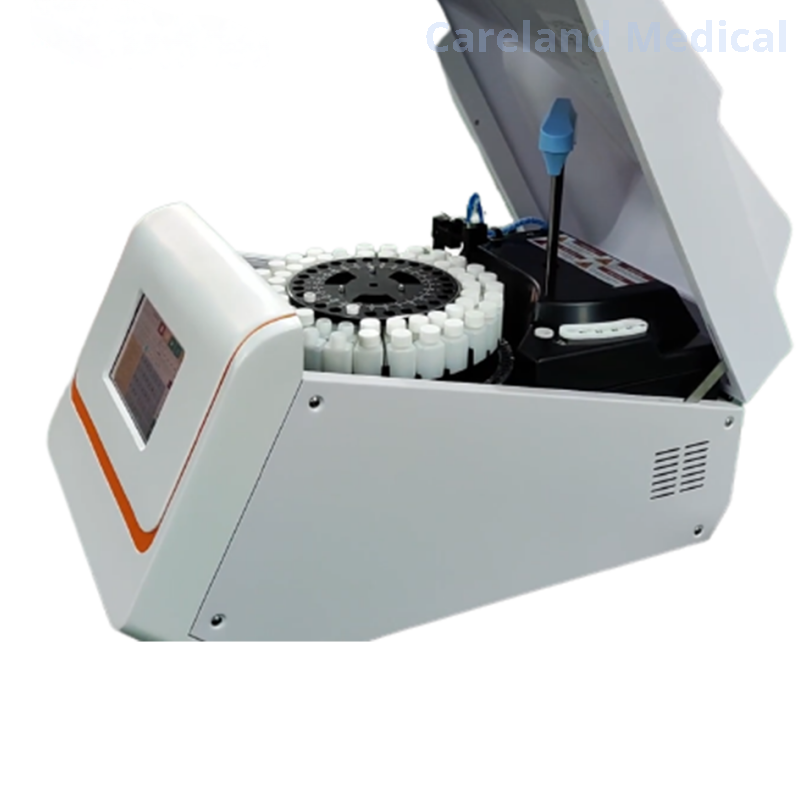

CL-6100
Careland
Application:
Model: CL-6100
Equipment voltage: 220V
Equipment power: 1500W / 1700W
Cavity size: Φ245 ×360mm/ Φ245 ×470mm
Dimensions: 560×450×400mm /670×450×400mm
Net weight of equipment: 47KG / 53KG
Applications:
It's widely used in hospitals ,clinics and medical centers for clinical testings.
Features:
Two test mode: Automatic washing and Disposable cuvette
Open system, real time curve showing
LED lamp, ≥10000 hour for long life
7 inch Color LCD, touch screen
Memory for 10,000 sample results
RS232 interface, PC connecting
Probe with anti-collision function, liquid level detection
High pressure water flush interior the probe
Main Spcs:
Test mode: Kinetic, End-point, Fixed-time, Turbidimetry , Absorbance
Sample positions: 24 +5 (Using original tube)
Calibration position: 1
QC positon: 1
ST position: 1
Reagent positions: 54 (27 for 6mL; 27 for 24mL);
Cuvettes position: 81 can be reusable
Sample volume: 2~30 uL, 0.1ul increasing
Reagent volume: 20~350 uL, 0.1ul increasing
Test speed: 120 tests /hour
Wavelength: 8 Wavelength, 340, 405,450, 510, 546, 578, 630,700 nm
Absorbance range: 0~4.000 Abs
Absorbance precision: inside 0.00001 Abs
Repeatability CV :< 1%
Carry-over: < 0.1%
Water consumption: 5L/H for Automatic washing mode; 2.5L/H for Disposable cuvette mode
Quality control curve: 、SD、CV%、L-J quality control curve for every test item
Printer: Internal thermal sensitive printer
Interface: RS-232
Work Environment: Temperature 10℃ ~ 30℃, Humidity: ≤85%
Power supply: 100~240VAC，50/60Hz，100VA
