Application:

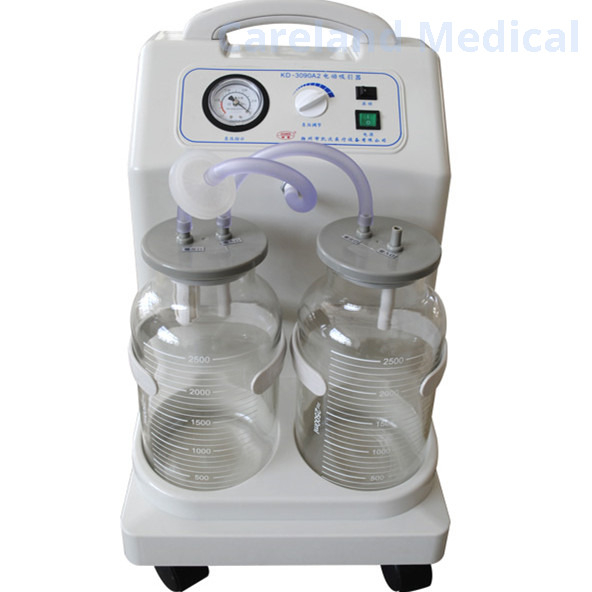

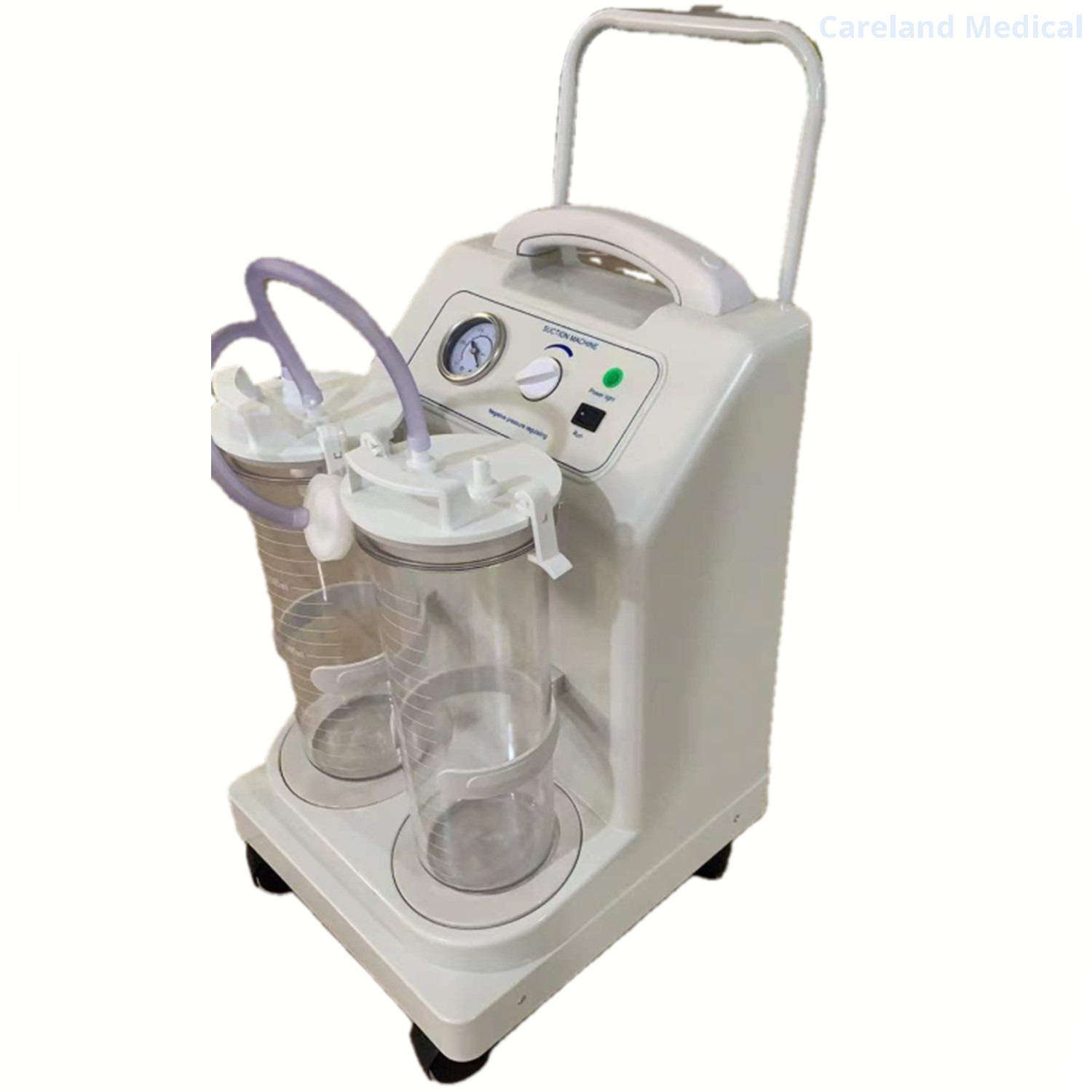

CL-207 Mobile Electric Suction Unit is widely applied to hospital operation room sucking mucus such as pus, blood, phlegm of patient, it also can be used for induced abortion. The complete machine works stably and produces low level of noise. It is long in service life and safe and reliable in use.
Features:
The device is made of high quality engineering ABS materials, and adopts Integrated molding workmanship.
The device is equipped with an imported membrane pump available with longer service life.
This device has low noise and is maintenance-free.
This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
Main Parameters:
※It adopts a highly efficient plunger pump that is dispense with lubrication and has a longer service life.
※The suction pump is uni-directional without generating positive pressure, it is designed to have an excess flow protection device to prevent the liquid from entering into the suction pump.
※ Have negative pressure adjustable valve and check valve, be capable of adjusting safe pressure, and selecting arbitrary value in safe pressure range
※The hand switch and foot switch are connected with each other in a parallel manner, they can be chosen and used at one’s will, and the foot switch is for low-pressure control in order to ensure safety, convenient to control.
※ Limit negative pressure value: ≥0.09Mpa under standard atmospheric pressure
※ Air suction rate: ≥20L/min(at the end), ≥30L/min(at the pump) under standard atmospheric pressure

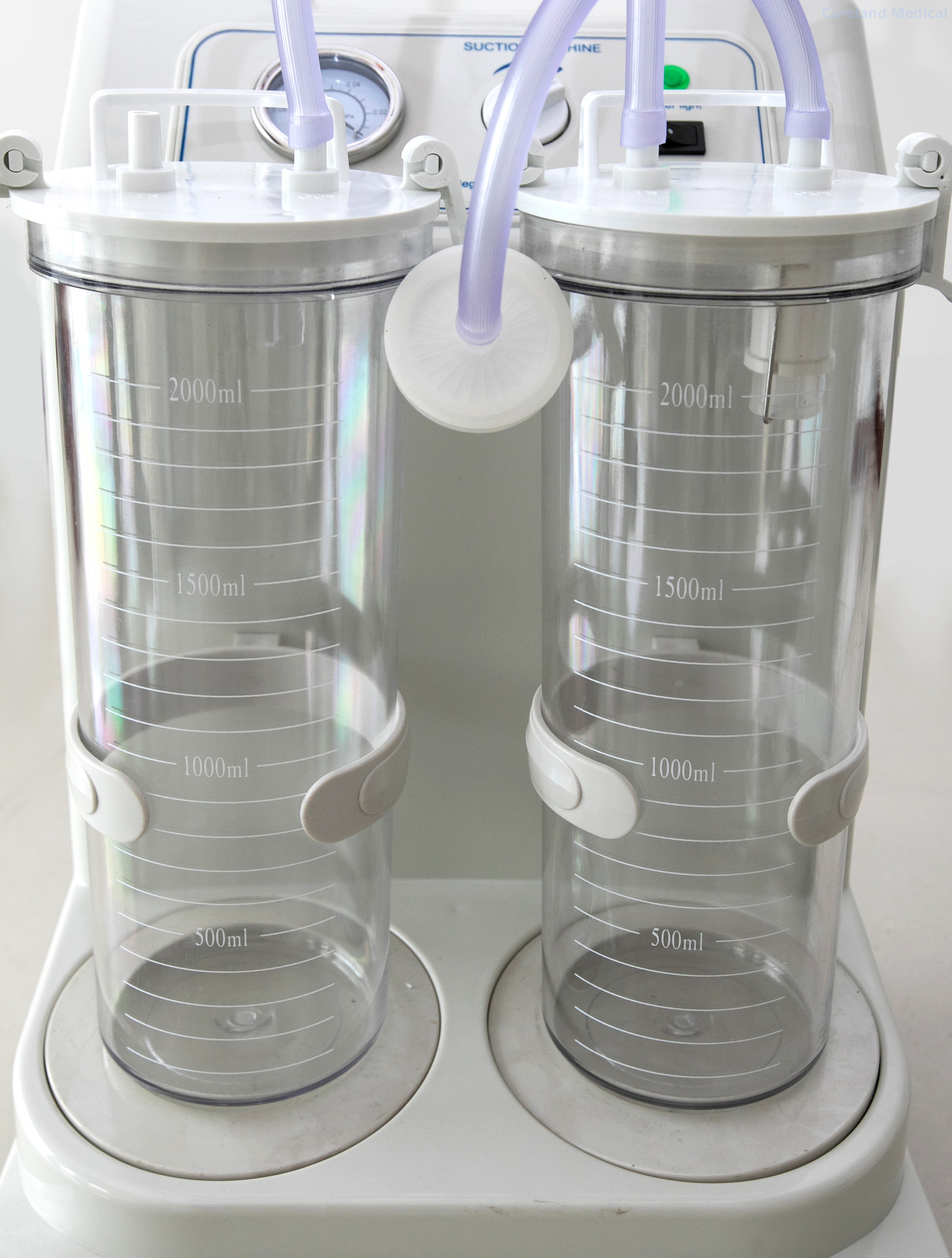

※ Mucus bottle: 2500ml×2 Noise: ≤60dB（A）
