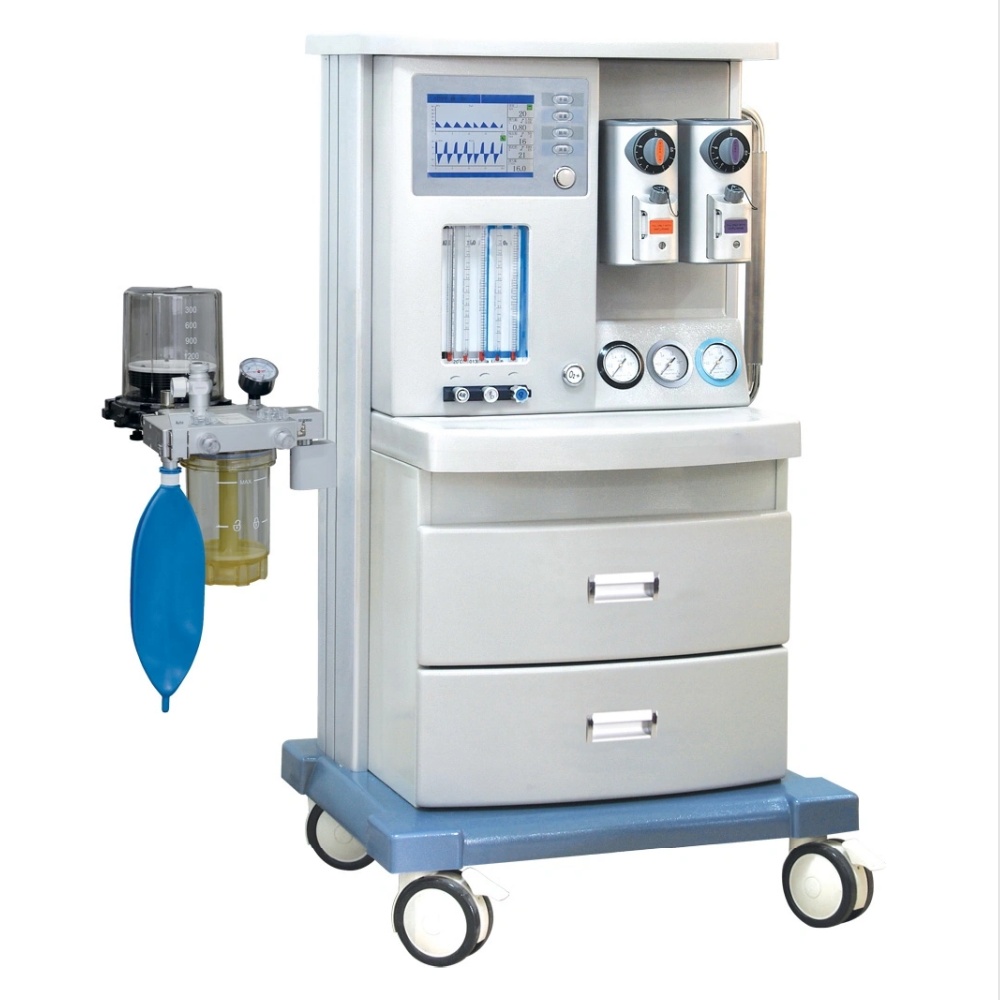

CL-1850A Anesthesia Machine

This paragraph anesthesia machine adopts advanced and stable APL valve device, suitable for low flow anesthesia, color LCD screen, can display time pressure, flow time and pressure-volume loop, with oxygen concentration monitoring, and optional plug-in patient monitoring, composition anesthesia workstation.

Specifications

Anesthesia ventilator

• Pneumatically driven electronically controlled system

• Built-in ventilator, 10.4” LCD display

• With 1 patient circuit for adult (Optional:patient circuit for children)

• 5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;

• Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)

• Oxygen Flush: 25~75 L/Min;

• Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh

• Tidal Volume: 0~1500 mL;I:E: 8:1~1:10

• Respiration Frequency: 1~99bpm;

• PEEP: 1~10 hPa;

• Ptr: -10~10 hPa;

• CO2 absorber capacity: 1 kg

• Lung compliance: ≤ 30mL/kPa;

• IMV frequency: 1~12bpm

• Inspiratory Plateau: 0~1S;

• O2 Concentration: 21%~100%

• Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

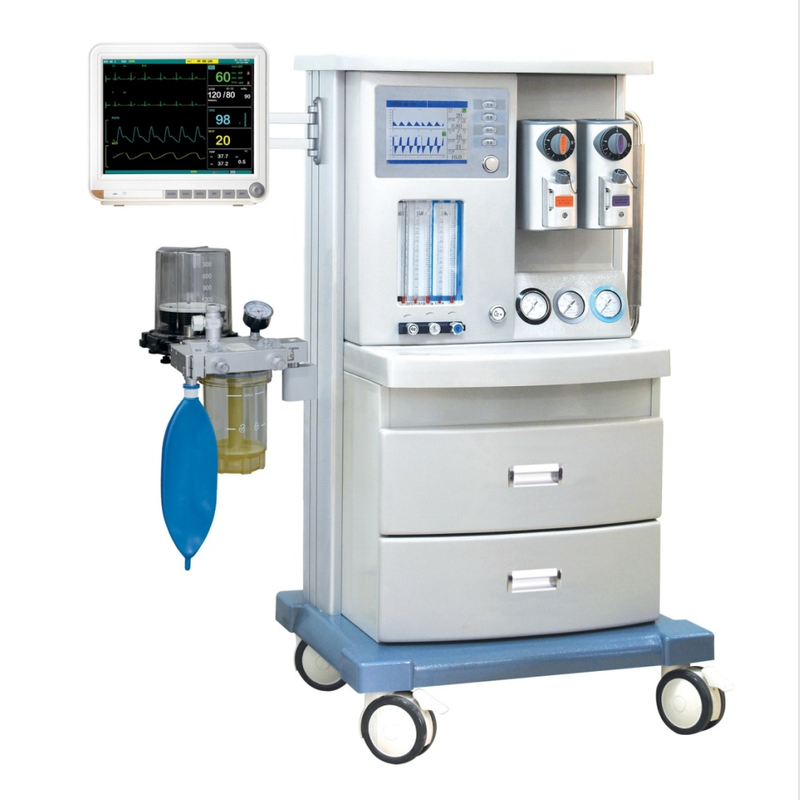

Patient Monitor

• 12.1''TFT large screen of high resolution

• ECG: 5-lead, gain:×2.5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF    electrotome)

• Heart Rate: 20~250bpm

• RESP: Impedance, range: 0~100bpm

• SpO2: 0%~100%

• Pulse Rate: 20~250bpm

• NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable

• TEMP: 0~50ºC

• Alarm: Audio and visual alarm

• Tendency record 96 hours

Loop part

• Integrated design, integrated breathingcircuit

Evaporator

• High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane

• Concentration adjustment range: 0.5 ~ 5%VOL

• Evaporator flow, pressure, and automatictemperature compensation function

• Self-locking feature

Configuration

• Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

• Anesthesia gas concentration range: 0.5~5%

• Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.

• ISO certificates approved
