CL-VA100
Careland

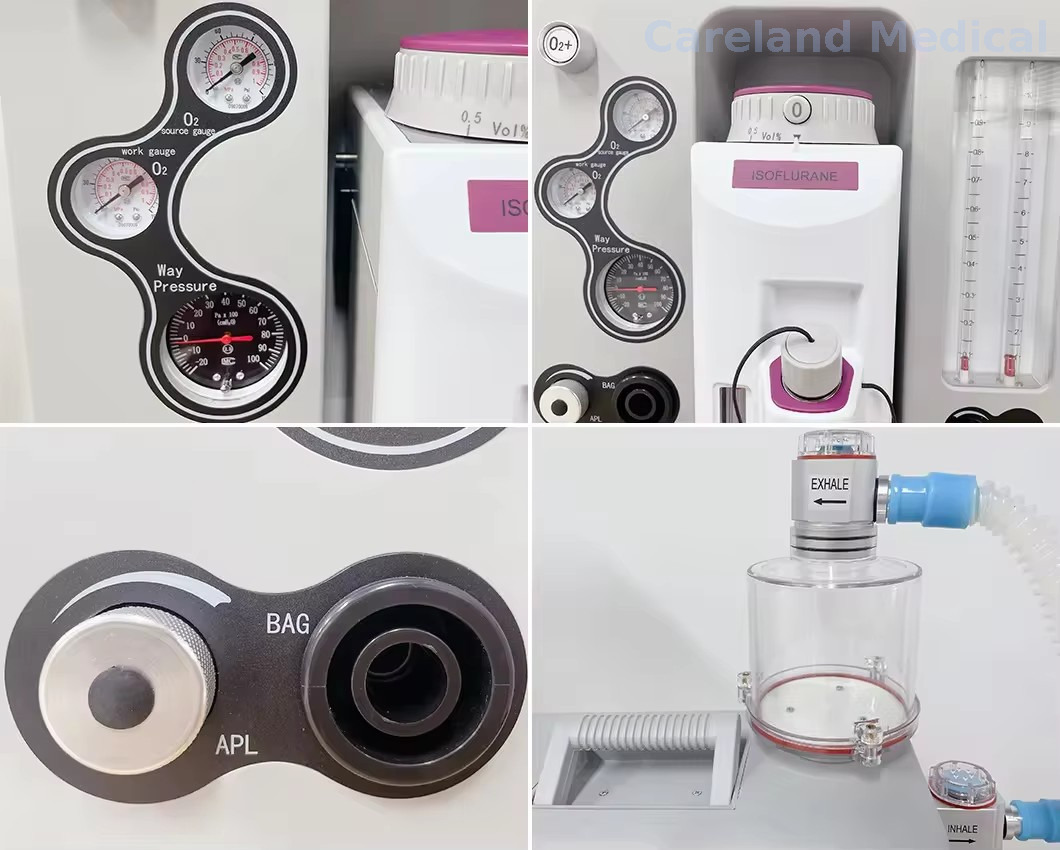

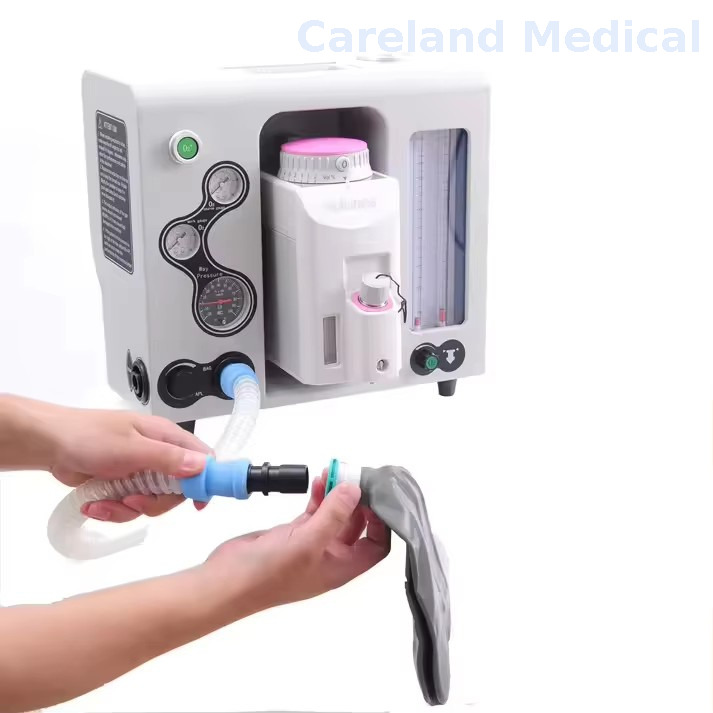

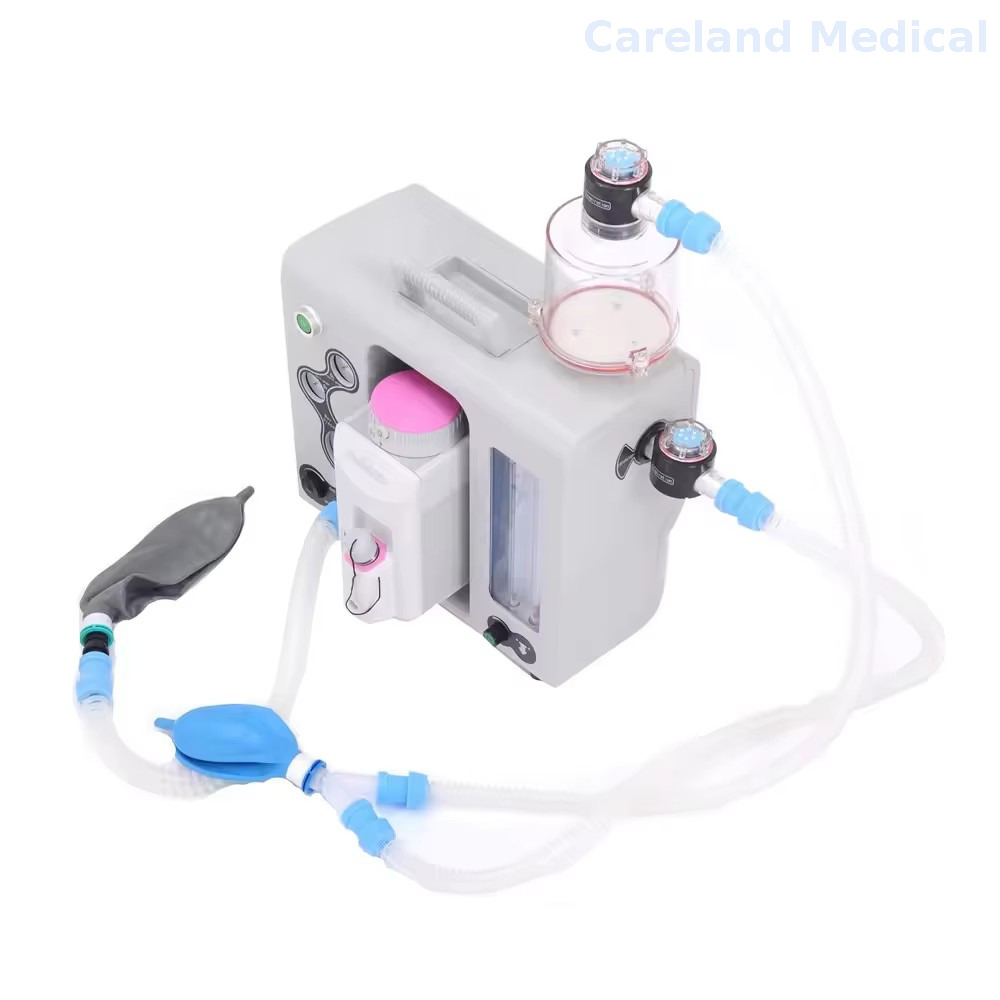

Features:
1. CE approved portable anesthesia machine
2.Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
3.Suitable for small animals, Jackson or Bains Absorber is available
4. Specifically designed to accomodate low flow .Selectatec-bar and quick change vaporizer mounting device
5. Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.
6.External and reusable soda lime canister, easily watch and replace soda lime.
7.With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.
8.With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety.
9.Wastewater discharge system .
10.Visible inspiration and expiration valve .
11.Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely . Module rack with polyester medical material with superior spray technology, high strength and light weight.
12.With transport case, convenient to take and transport 13.Easy to disassemble and assemble all the components, convenient for clean and maintenance.
Main Parameters:
Specification | |
Application | 1-100KG Patient |
Working Mode | Closed, Half-closed, Half-open |
Tidal volume | 10～2000ml |
Gas pressure | 0.25～0.65Mpa |
Flowmeter | O2: 0.1~10 L/M, N2O: 0.1~10 L/M |
Breathing Mode | IPPV/Manual, 2~99 beats / Min Or Equip with Ventilator |
APL valve | 0.5～6.0 Kpa |
O2 Flush | 25～75 L/Min |
CO2 Canister Volume | 1000 ml |
Power Supply | AC220V、50Hz、50VA |
