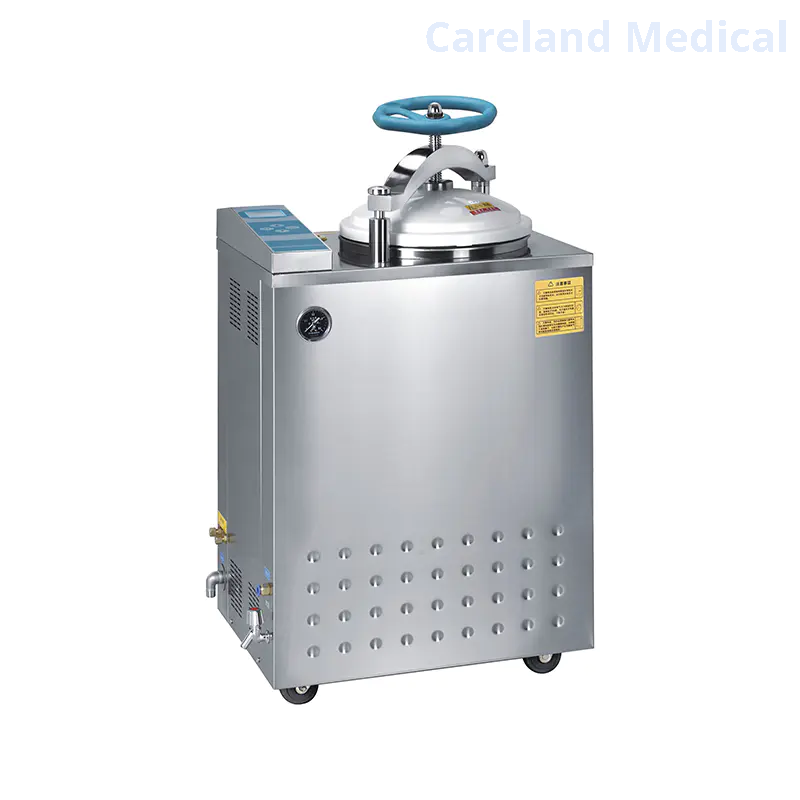

CL-920 Fully Automatic Circulation Vertical Pressure Steam Sterilizer

CL-920 Fully Automatic Circulation Vertical Pressure Steam Sterilizer
Availability:
Quantity:
  • CL-920

  • Careland

Application:

The vertical pressure steam sterilizers are assembled with a heating system, micro-computer controlled system, and overheat and overpressure protection system, which are reliable for the sterilizing effects, convenience of operation, and energy conservation. They are suitable for sterilizing equipment, dressings, containers, liquids, culture medium, waste, etc. in hospitals, disease control centers, P2 biological laboratories and blood stations, etc. of scientific research institutes.


Features:

● Fully stainless steel structure.
● Hand wheel type of quick-open door structure.
● Door safety lock system.
● Automatically controlled by computer.
● LCD display of working status, touch type key.
● Over temperature & over pressure auto-protection.
● The internal steam/water circulation system is equipped with an exhaust cooling system, which avoids the generation of aerosols and does not discharge steam to the outside. Therefore, the working environment is clean and dry.
● Self-inflating type seal.
● Safe protection of water lacking.
● Automatically shut off with a beep reminder after sterilization.
● With two stainless steel sterilizing baskets.
● A high-efficiency filter is added to the exhaust to ensure the safety of the environment and operators.
● Optional drying system.


Specification:

MODEL/Technical DataCL-920CL-920CL-920CL-920
Chamber volume35L50L75L100L
Φ318×450mmΦ340×550mmΦ400×600mmΦ440×650mm
Working pressure0.22Mpa
Working temperature134℃
Max. working pressure0.23Mpa
Heat average≤±1℃
Timer range0-99min/0-99hour59min
Temperature adjust range0-134℃
Power1×2.5KW/AC220V. 50HZ2×1.5KW/AC220V 50HZ3×1.5KW/AC220V 50HZ
Overall dimension(mm)470×450×1020710×465×1150750×510×1250750×510×1250
Transport dimension(mm)710×490×1130740×490×1130780×600×1380780×600×1380
G.W/ N.W104Kg/85Kg122Kg/99Kg146Kg/120Kg148Kg/122Kg
