CL-936
Careland
Application:

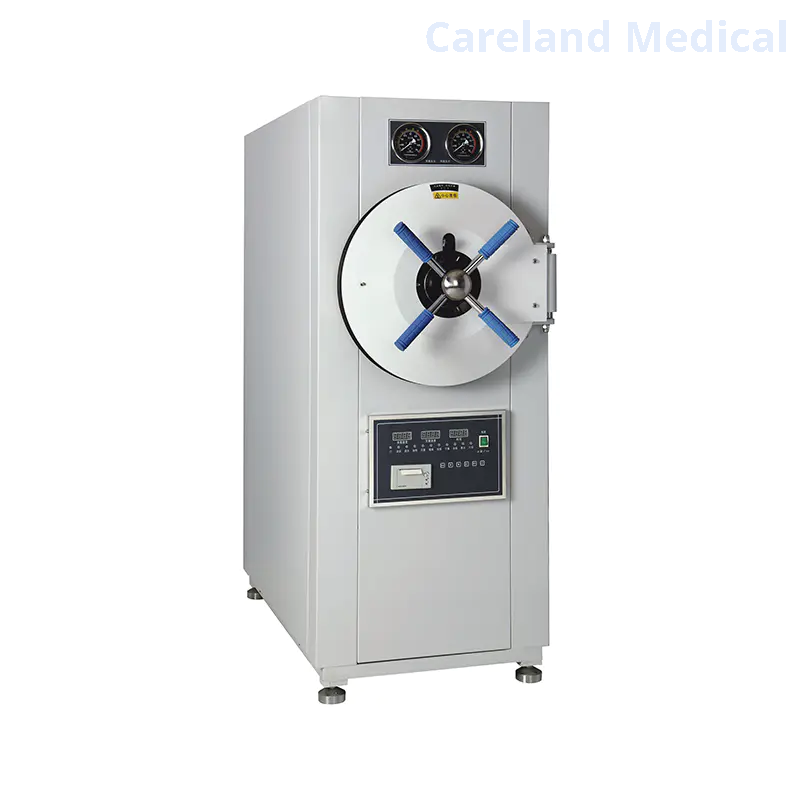

Microcomputer control Horizontal Pressure Steam Sterilizer Automatically controlled the sterilizing process, easy to operate: The microcomputer control system allows for precise and automated control of the sterilization process, making it user-friendly and ensuring consistent results. The safety valve will be open automatically when the inner pressure is over 0.24MPa, and the steam would be exhausted into the water tank: This safety feature ensures that excess pressure is released safely to prevent any potential hazards. With drying function, suitable for medical dressing drying: The inclusion of a drying function is beneficial for ensuring that the sterilized items, especially medical dressings, are thoroughly dried after the sterilization process. The door cannot be opened until the pressure in the chamber is reduced to 0.027MPa: This is a safety measure to prevent premature opening of the door, ensuring that the internal pressure has reached a safe level before allowing access. Automatically cut off the power if a water lack happens, and alarm at the meanwhile: This safety measure protects the sterilizer by cutting off power in the event of water shortage, with an alarm to alert users. inclusion of a printer allows for documentation and record-keeping of sterilization cycles, providing a traceable history of the sterilization process.
Features:
● Automatically controlled the sterilizing process, easy to operate.
● With drying function, suitable for medical dressing drying.
● With over-temperature, over-pressure auto-protect.
● The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
● The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
● Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
● The chamber of the sterilizer is made of stainless steel.
Application:
| MODEL/Technical Data | CL-936 | ||
| Sterilizing chamber volume | 150L | 200L | 280L |
| Φ440×1000mm | Φ515×1000mm | Φ600×1000mm | |
| Working pressure | 0.22Mpa | ||
| Working temperature | 134℃ | ||
| Temperature adjust range | 40-134℃ | ||
| Time for sterilization | 0-99min | ||
| Time for drying | 0-99min | ||
| Heat average | ≤±2℃ | ||
| Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz |
| Dimension（mm） | 1400×650×1820 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension(mm) | 1560×860×1820 | 1560×910×1880 | 1680×1060×2050 |
| G.W/N.W | 430/340kg | 436/350Kg | 570/462Kg |
Application:
Microcomputer control Horizontal Pressure Steam Sterilizer Automatically controlled the sterilizing process, easy to operate: The microcomputer control system allows for precise and automated control of the sterilization process, making it user-friendly and ensuring consistent results. The safety valve will be open automatically when the inner pressure is over 0.24MPa, and the steam would be exhausted into the water tank: This safety feature ensures that excess pressure is released safely to prevent any potential hazards. With drying function, suitable for medical dressing drying: The inclusion of a drying function is beneficial for ensuring that the sterilized items, especially medical dressings, are thoroughly dried after the sterilization process. The door cannot be opened until the pressure in the chamber is reduced to 0.027MPa: This is a safety measure to prevent premature opening of the door, ensuring that the internal pressure has reached a safe level before allowing access. Automatically cut off the power if a water lack happens, and alarm at the meanwhile: This safety measure protects the sterilizer by cutting off power in the event of water shortage, with an alarm to alert users. inclusion of a printer allows for documentation and record-keeping of sterilization cycles, providing a traceable history of the sterilization process.
Features:
● Automatically controlled the sterilizing process, easy to operate.
● With drying function, suitable for medical dressing drying.
● With over-temperature, over-pressure auto-protect.
● The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
● The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
● Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
● The chamber of the sterilizer is made of stainless steel.
Application:
| MODEL/Technical Data | CL-936 | ||
| Sterilizing chamber volume | 150L | 200L | 280L |
| Φ440×1000mm | Φ515×1000mm | Φ600×1000mm | |
| Working pressure | 0.22Mpa | ||
| Working temperature | 134℃ | ||
| Temperature adjust range | 40-134℃ | ||
| Time for sterilization | 0-99min | ||
| Time for drying | 0-99min | ||
| Heat average | ≤±2℃ | ||
| Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz |
| Dimension（mm） | 1400×650×1820 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension(mm) | 1560×860×1820 | 1560×910×1880 | 1680×1060×2050 |
| G.W/N.W | 430/340kg | 436/350Kg | 570/462Kg |
