CL-C23
Careland
Application:
Model: CL-C18 18L /CL-C23 23L
Equipment voltage: 220V
Equipment power: 1500W / 1700W
Cavity size: Φ245 ×360mm/ Φ245 ×470mm
Dimensions: 560×450×400mm /670×450×400mm
Net weight of equipment: 47KG / 53KG

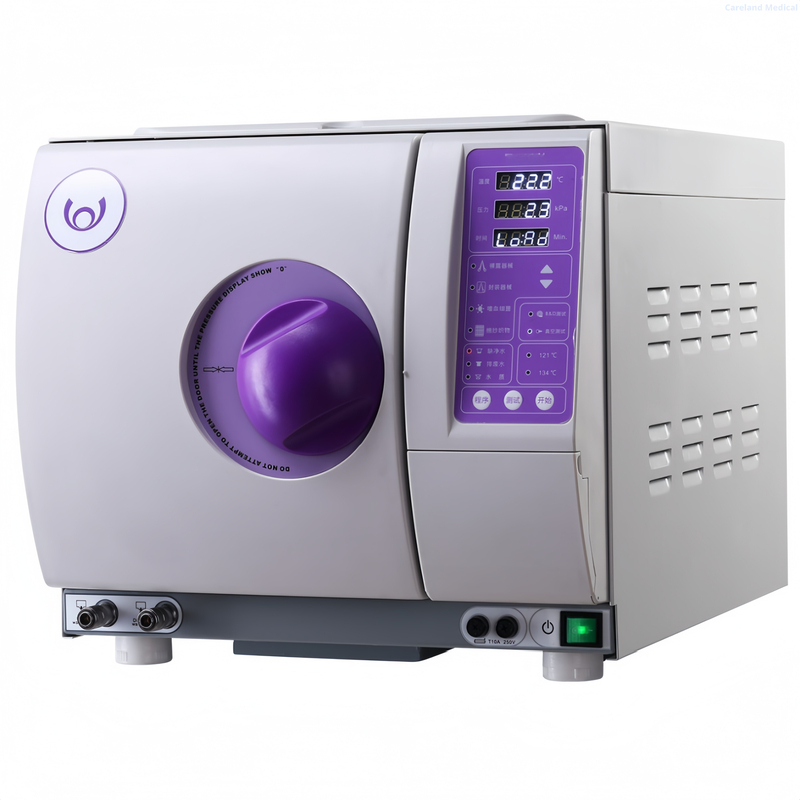

It is a class B pre-vacuum recommended for medical-odontological clinics, veterinary, podiatry, beauty salons, hairdressers, tattoo studios and the like. Its vertical reading front panel selects and activates preprogrammed functions, identifies temperature, pressure, time and sequence of the phases of the complete cycle, shows the water level in the distilled and used water tanks.
Features:
PWM preheating system that operates by pulse modulation with electronic precision, conjugated with the ring in the form of a tape and guarantees regularity, stability and maintenance of the temperature inside the stainless steel chamber, with time and productivity gain.
Steam production system injected in a preheated chamber that avoids the condensation of the distillate, penetrates the less accessible points of the loads, sterilizes with more uniformity and efficiency, preserves the integrity of the sterilized material, saves time and reduces cost.
Prewash and Vacuum that act with negative pressure of up to 0.9 bar and ensure stability in the sterilization process.
Vacuum drying programmable and customizable by the user between 20 and 60 minutes.
Vacuum produced by a 2-head, low noise pump with a capacity of -0.9 bar.
High density air filter that ensures the purity of the air admitted during drying and stabilization of atmospheric pressure at the end of the cycle.
It is intended to sterilize any autoclavable material, whether solid, field, rubber, articulated, porous, cotton and fabric.
Has Bowie & Dick, Helix and vacuum tests. And Príon program that requires rigorous parameters such as 3 pre-vacuum, correct conjugation of time-temperature-pressure and vacuum drying (closed door).

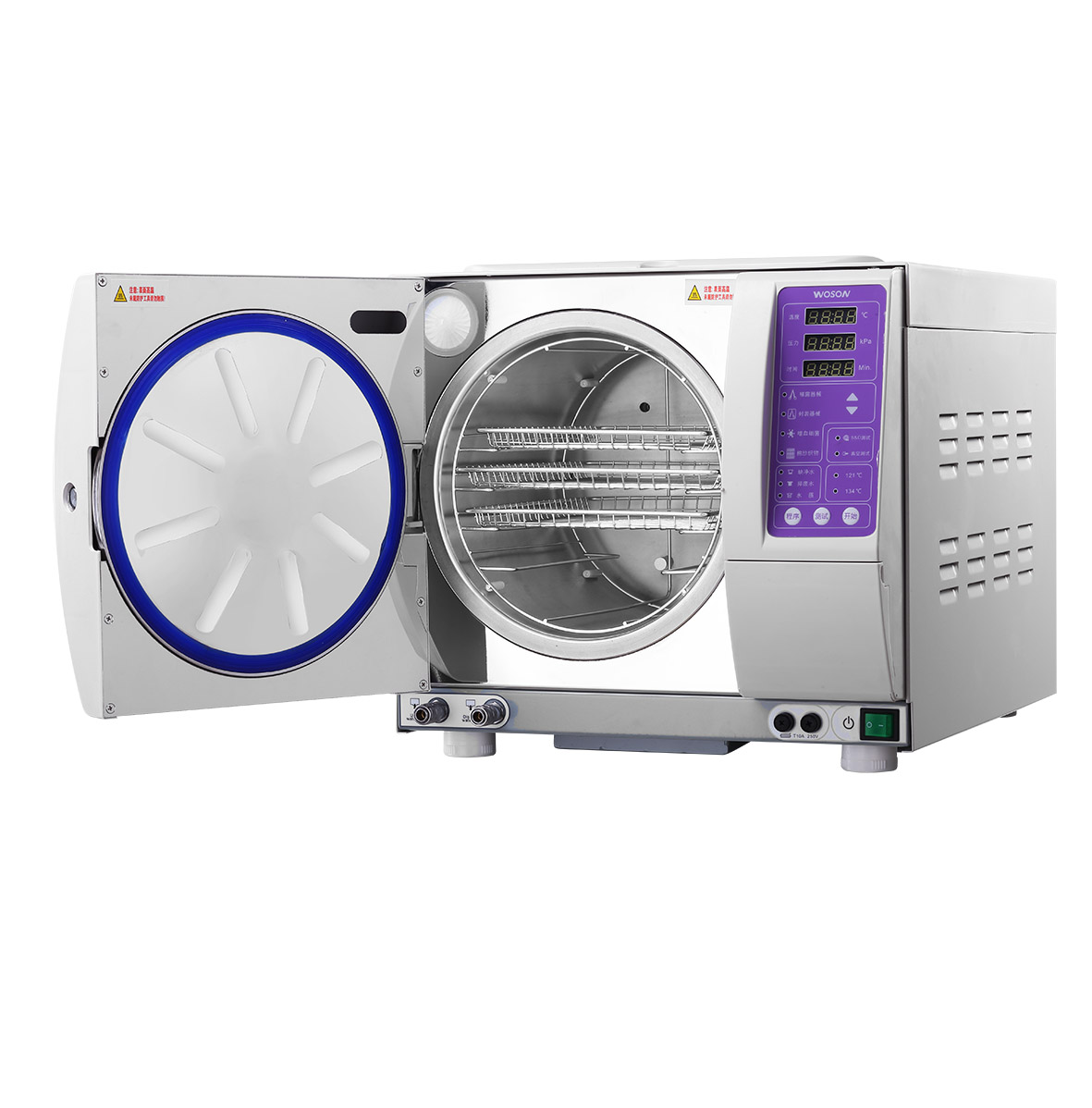

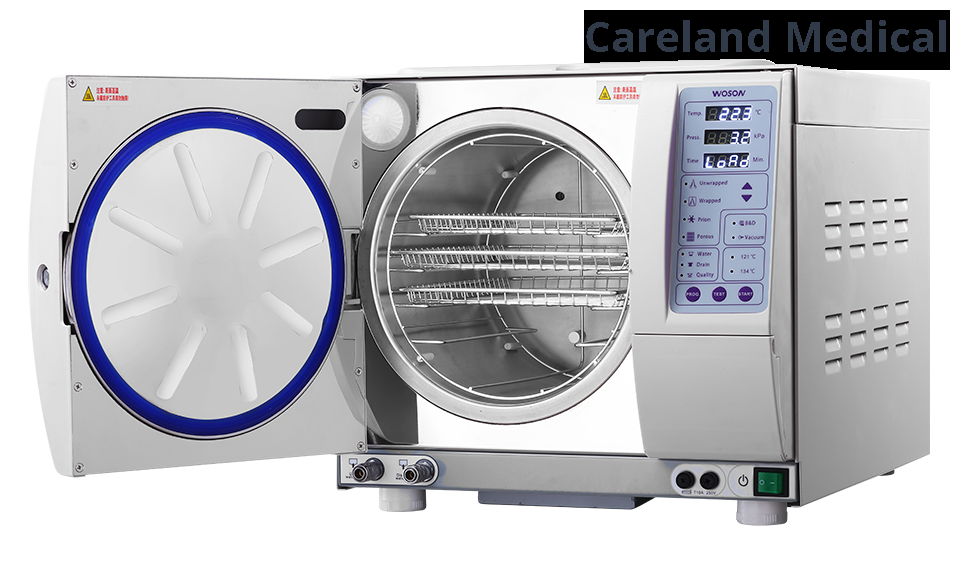

304 AISI 304-18 / 8 steel chamber, without welding amendments, whose finish facilitates internal cleaning and maintenance.
Drains destined to the elimination of distilled water and water used.
USB connectivity for simultaneous recording, in pendrive, of the phases of the cycle, including the aborted ones, rationalizing the management and granting transparency and security to users and patients.
Compartment for optional mini printer, which is intended to record data, even aborted, on thermal tape, every 30 seconds, until the end of the cycle. It can be operated simultaneously with the pendrive.
